Technical Parameter |
|
|
Model |

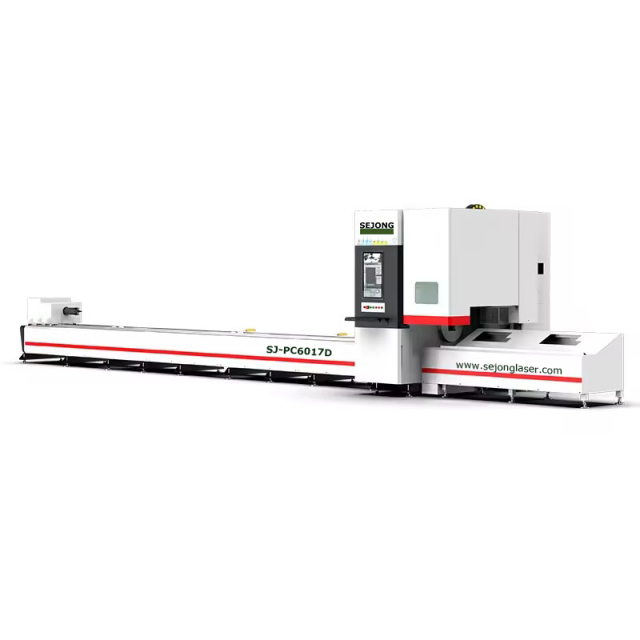

SJ-PC6017D |
|
Cutting Length |
≤6000mm |
|
Diameter |
Φ口10-170mm |
|
Laser Power |
1000w-6000w |
|
Laser Head |
Raytools Auto Focus Laser Head |
|
X,Y Positioning Accuracy |
±0.03mm/1000mm |
|
X,Y Repeat Positioning Accuracy |
±0.02/1000mm |
|
Max Rotation Speed |
120r/min |
|
G Speed |
1.2G |
|
Control System |
TubePro (FSCUT 5000) |
|
Gas |
O2、N2、Air |
|
Cooling System |
Constant temperature control chiller for laser machine (external connection) |
|
Power Supply |
380v 50Hz |
