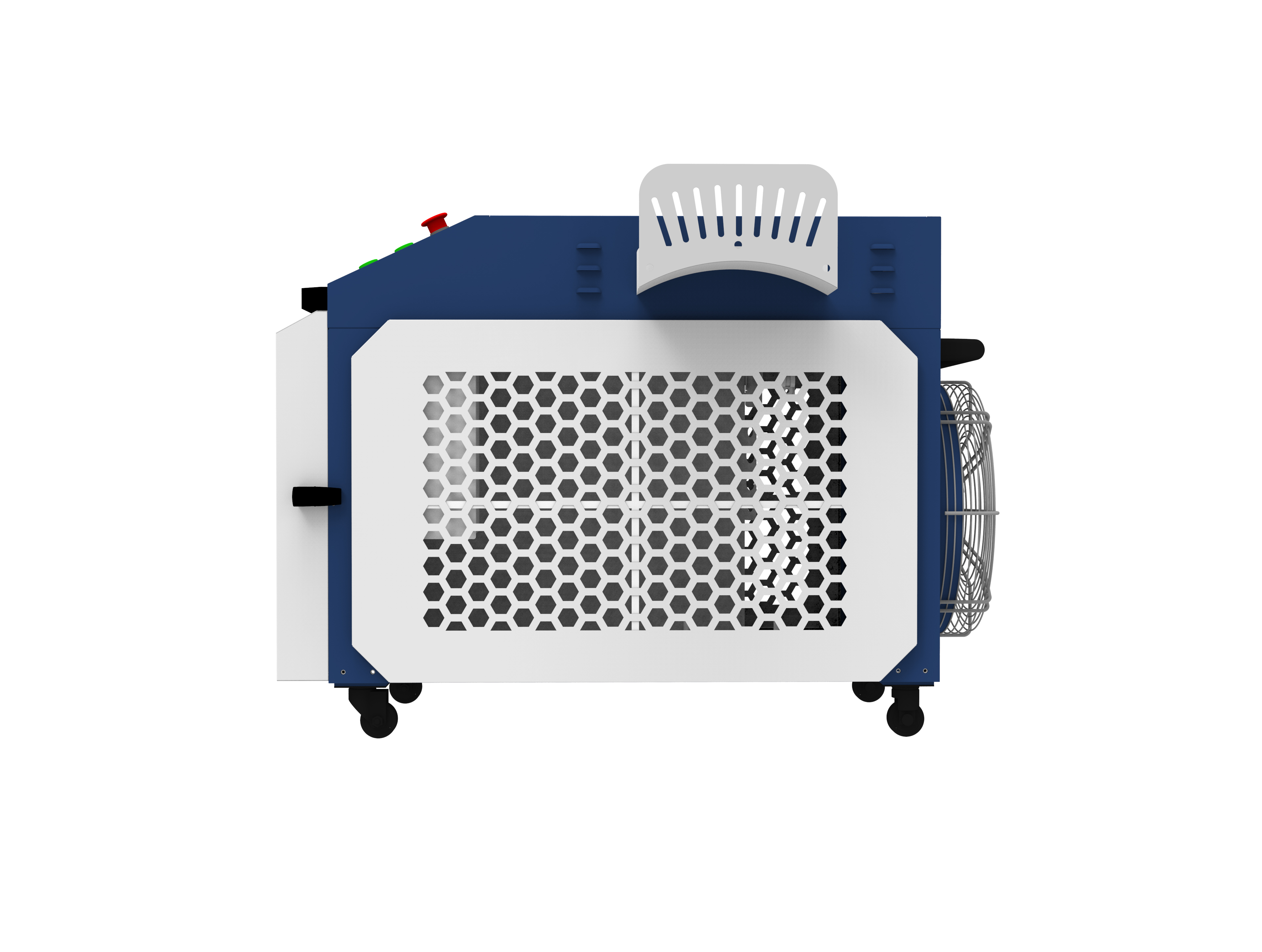

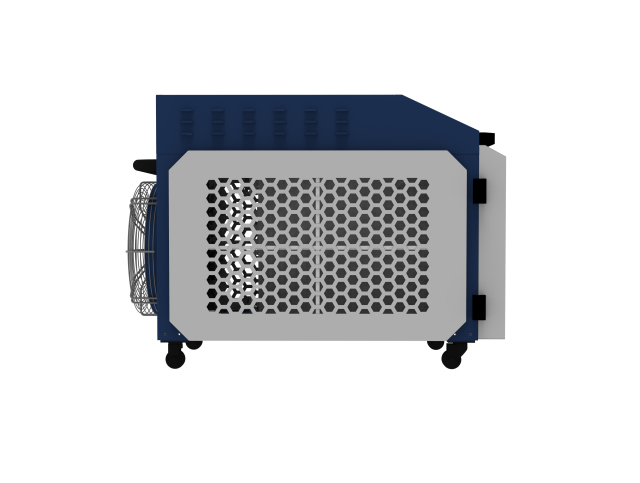

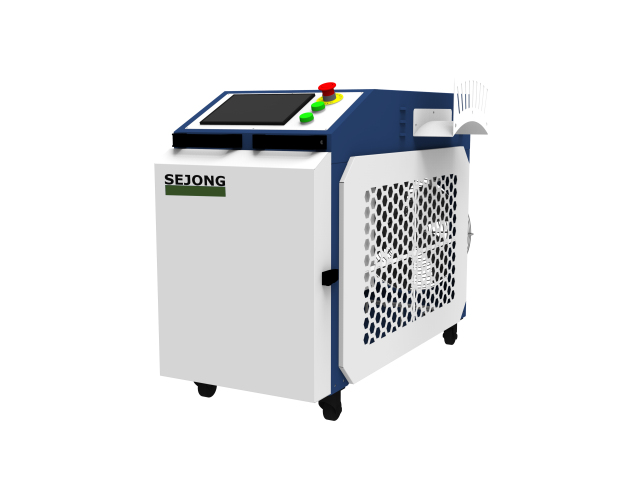

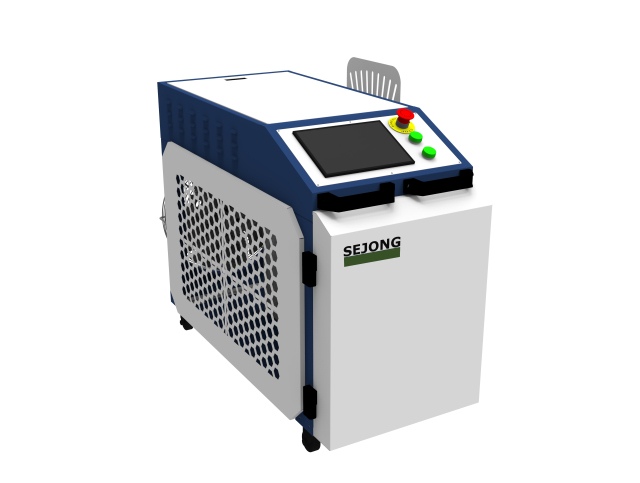

Model |
SJ-HW1000 |
|
Laser Power Fiber |
1000w 1500w 3000w |
|
Laser wavelength |
1070nm |
|
Fiber core diameter |
50μm |
|
Fiber length |
10m |
|
Laser working mode |
Continuous / Modulation |
|
Galvanometer width |
0.5-6mm |
|
Galvo scan speed |
≤8000mm/s |
|
Welding speed |
0-120mm/s |
|
Refrigeration unit |
Intelligent dual temperature chiller |
|
Working environment temperature |
15-35℃ |
|
Humidity range of working environment |
＜70% non-condensing |
|
Welding material thickness |
≤4mm |
|
Welding gap requirements |
≤2mm |
|
Welding gap requirements |
220V±10% (50/60Hz) |
|
Total power |
≤6KW |
|
Machine size |
1000mm*550mm*700mm |

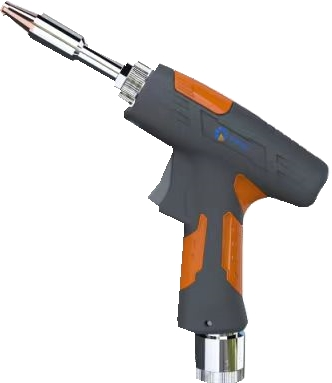

-Swing Welding Head
Dedicated welding tip for welding at any position and angle Infrared positioning, more accurate welding position.
According to the welding seam, it can be divided into single wire feeding &double wire feeding.

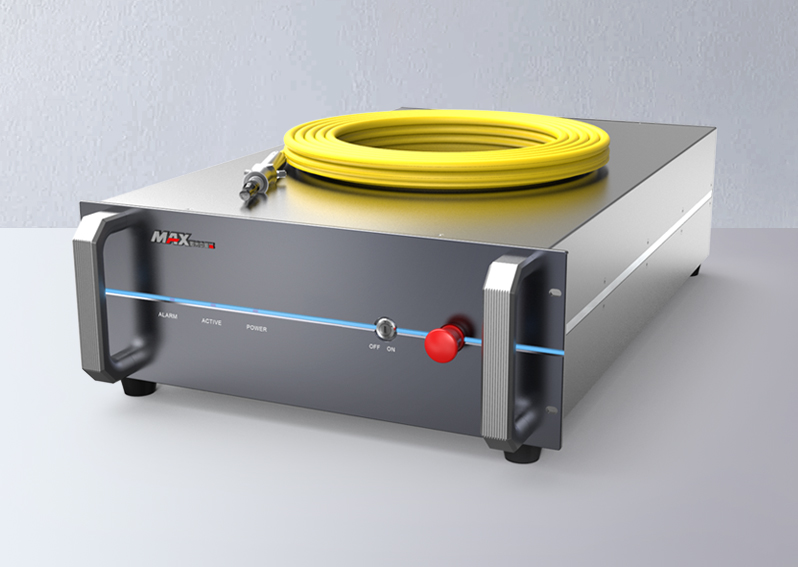

-Max Laser Source
(1) High beam quality
(2) High power and efficiency
(3) High reliability and long service life
(4) Compact and firm package
(5) Extended programming interface.
Fiber laser is a compact and efficient high-power laser, which has the characteristics of high power, ideal beam quality, maintenance-free and high electro-optical conversion efficiency. It can be used for cutting, welding and drilling metal materials such as stainless steel, carbon steel, aluminum and copper, and is widely used in sheet metal cutting, hardware processing, household appliances manufacturing, automobile manufacturing and other fields.
